The baseplate serves as the basis for the experiments. Magnetic spheres are inserted into it, which serve as a holder for the modular construction kit. It enables the adjustment of various experiments and can be printed in different sizes as required. Connectors can be used to connect several baseplates together.
On this page you will find information on assembly and special features.
Assembly
Exploded View
Material:
- 1x 00A_Bl_V*_baseplate 4×6
or
- 2x 00B_Bl_V*_baseplate_con. 4×3
- 3x 00B_Bl_V*_connector_basepl.
- 1x XX1\_TOOL\_connect\_baseplates
Tools:
- (Pipe) pliers
- Knife
- Base plates tool (see material)
You will also find detailed instructions for assembly, as well as a component and material list with the STL files for 3D printing and links to the relevant stores.
Special features
Size of the baseplate
The baseplate is available in different sizes. The 4×6 size is sufficient for all experiments, but can only be printed in one piece on very large 3D printers. For smaller printers, there is a variant in which two plates of size 3×4 can be connected to form a 4×6 plate using connectors (00B_Bl_V*_connector_basepl.) and the baseplate tool. The connectors are pressed apart and inserted from the appropriate side.

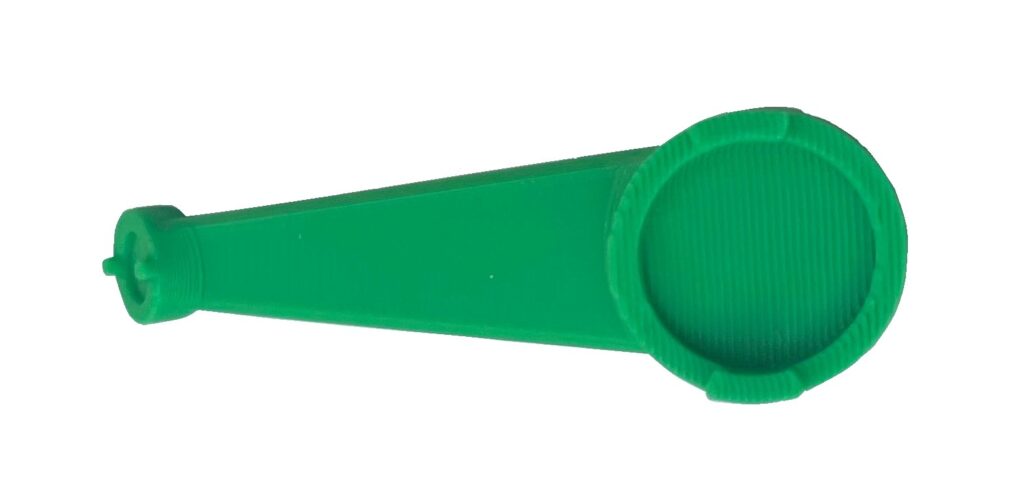

Baseplate tool
You will need the baseplate tool to assemble several baseplates into a larger one. This can be used to tighten the connectors in the openings.
