The lens module is used for various experiments, such as the Michelson interferometer. Depending on the application, modules with different focal lengths can be combined. The background to this can be found on the respective pages for the experiments.
On this page you will find information about the assembly and the possible experiments.
Assembly
Exploded View
- 01A_Go_V*_cube_base 1×1
- 02A_Br_V*_cube_cover 1×1
- 13A_Si_V*_lens_holder
- or 13B_Si_V*_lens_holder_f=15mm
- or 13C_Si_V*_lens_holder_f=26,5mm
- or 13D_Si_V*_lens_holder_f=65mm
- 1x Lens
- f=15mm & ø=16,5 mm
- or f=26,5 mm & ø=15 mm
- or f=65 mm & ø=16,5 mm
- 4x Allen cylinder head screw, M3x12
Tools:
- Allen key – 2,5 mm
- (3D printing tool for lens insertion)

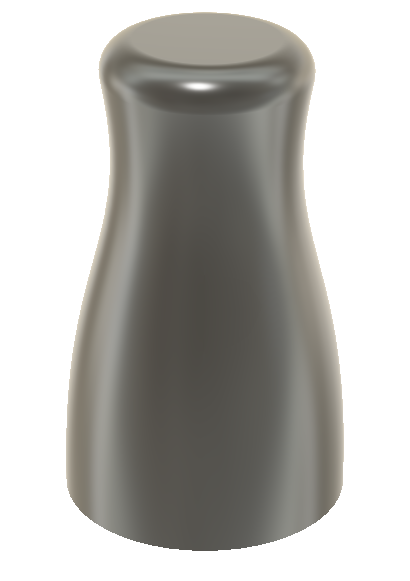

The lens tool can help to keep the four holding arms apart to make it easier to insert the lens.
You will also find detailed instructions for assembly as well as a component and material list with the STL files for 3D printing and links to the relevant stores.
Experiments
- Michelson interferometer – 1 pc. (f=15 mm)
- Michelson interferometer with piezo element – 1 pc. (f=15 mm)
- Mach-Zehnder interferometer – 1 pc. (f=26.5 mm)
- Polarization – 1 pc. (f=65 mm)
- BB84 Protocoll – 1 pc. (f=65 mm)
